Can the main tube and branch tube have different diameters?

Yes. The main tube and branch can be specified with different diameters for reducing or unequal-size piping configurations.

Can the dimensions of the Y-type tee be customized?

Yes. Main tube diameter, branch diameter, wall thickness, overall length, and branch length can be customized according to drawings, samples, or dimensional requirements.

Is the branch angle customizable?

The standard configuration is 45°. Other angles may be considered for custom fabrication depending on the required geometry and manufacturing requirements.

Can the inside and outside surface finishes be specified separately?

Yes. ID and OD finishes can be specified independently, such as a polished or electropolished ID with a satin or brushed OD.

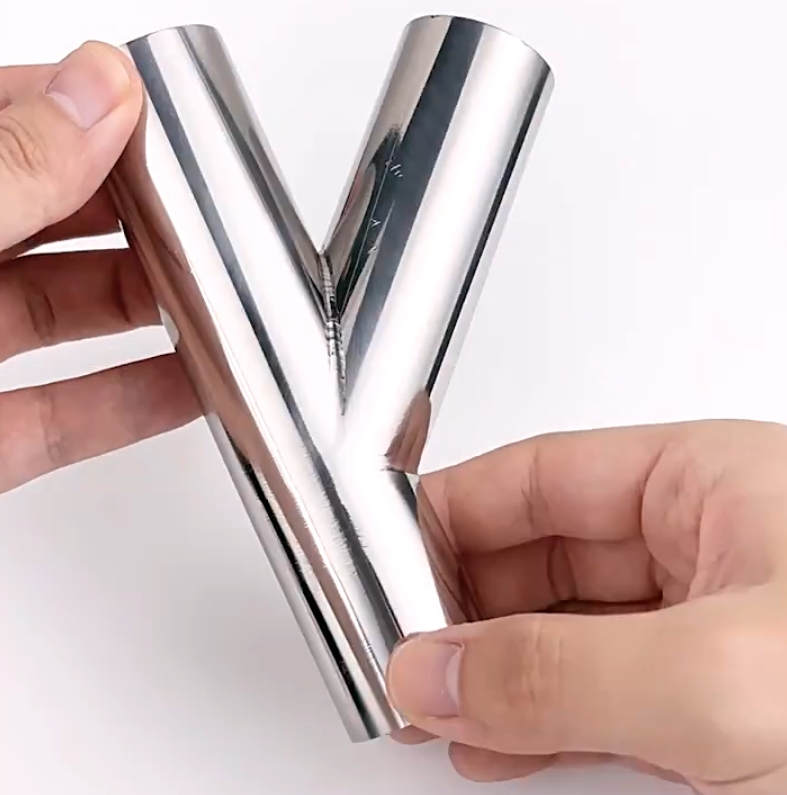

Custom 304/316L Stainless Steel 45° Y-Type Sanitary Weld Tee

Name: Custom 304/316L Stainless Steel 45° Y-Type Sanitary Weld Tee
Brand: WeldPure

Multi-Port Fittings

304/316L stainless steel 45° Y-type sanitary weld tees for angled flow diversion, merging, and pipe routing, with custom diameters, dimensions, and independent ID/OD surface finishes.

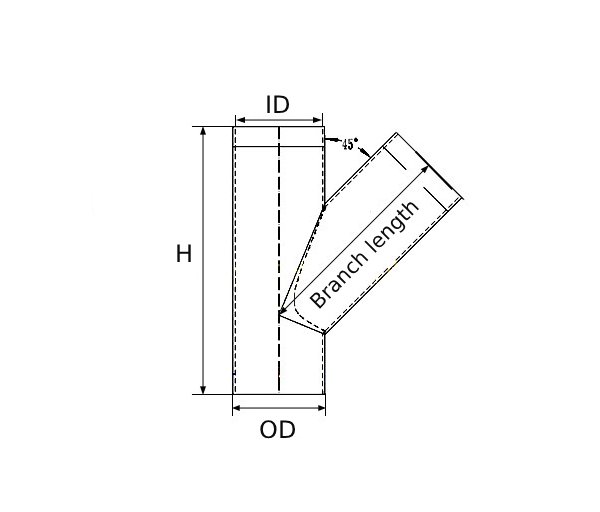

Size designation OD × WT	Outer diameter OD (mm)	Wall thickness WT (mm)	Height vertical (mm)	Branch length 45° slant (mm)
Φ12.7 × 1.5	12.7	1.5	80.2	56.6
Φ19 × 1.5	19	1.5	100	65.6
Φ25 × 1.5	25	1.5	100	62.5
Φ32 × 1.5	32	1.5	130	80.1
Φ38 × 1.5	38	1.5	140.6	95.6
Φ45 × 1.5	45	1.5	150	108.4
Φ51 × 1.5	51	1.5	160	114.5
Φ57 × 2	57	2	160	110.5
Φ63 × 2	63	2	160	106.5
Φ76 × 2	76	2	180	131.2
Φ89 × 2	89	2	201	142.6
Φ102 × 2	102	2	222	156.6

Customizable Dimensions

Parameter	Custom Options
Main Tube OD	12.7–219 mm / Custom
Branch Tube OD	Custom
Branch Angle	45° / Custom
Wall Thickness (T)	According to drawing / Custom
Main Tube Length (L1)	Custom
Branch Length (L2)	Custom
Overall Height (H)	Custom
Branch Position	Custom
End-to-End Dimension	Custom
Material	304 / 316L / Custom
Connection Ends	Butt Weld / Custom
Dimensional Tolerance	According to drawing / Custom

Can the main tube and branch tube have different diameters?: Yes. The main tube and branch can be specified with different diameters for reducing or unequal-size piping configurations.
Can the dimensions of the Y-type tee be customized?: Yes. Main tube diameter, branch diameter, wall thickness, overall length, and branch length can be customized according to drawings, samples, or dimensional requirements.
Is the branch angle customizable?: The standard configuration is 45°. Other angles may be considered for custom fabrication depending on the required geometry and manufacturing requirements.
Can the inside and outside surface finishes be specified separately?: Yes. ID and OD finishes can be specified independently, such as a polished or electropolished ID with a satin or brushed OD.

Material	304 Stainless Steel, 316L Stainless Steel
Size	12.7, 19, 25, 32, 38, 45, 51, 57, 63, 76, 89, 102, 108, 114, 133, 159, 219, Costom
OD Surface Finish	Mill / Satin / Brushed / Mirror Polished / Custom
ID Surface Finish	Polished / Mirror Polished / Electropolished / Custom
Wall Thickness	1.5mm, 1.65mm, 2mm, 3mm
Manufacturing Process	TIG Welded
Welding Method	Single-side welding with full internal penetration

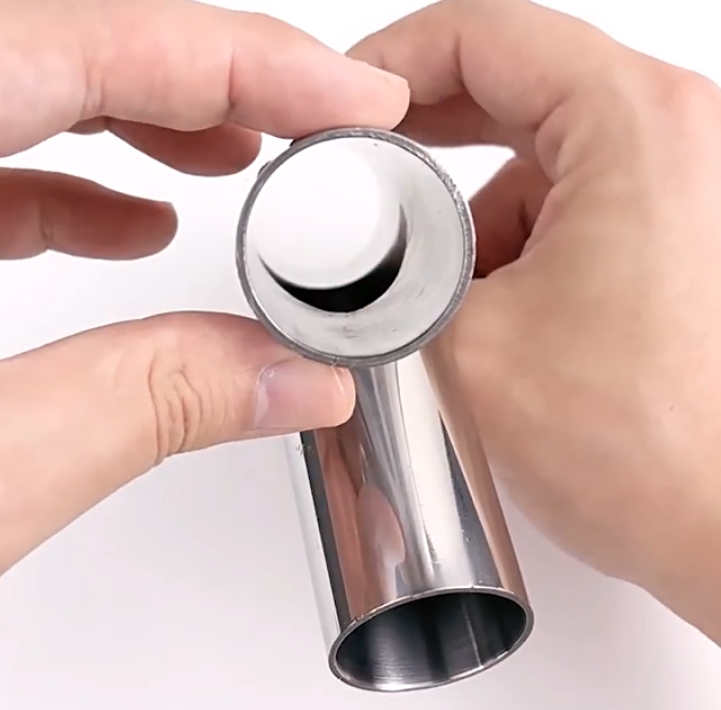

Internal Profile	Smooth, continuous transition at the branch junction

Customizable Dimensions
