316L Stainless Steel VCR Female & Male Nuts | EP Grade | Silver Plated | 1/4″ to 1″

20260924 jngwtamj

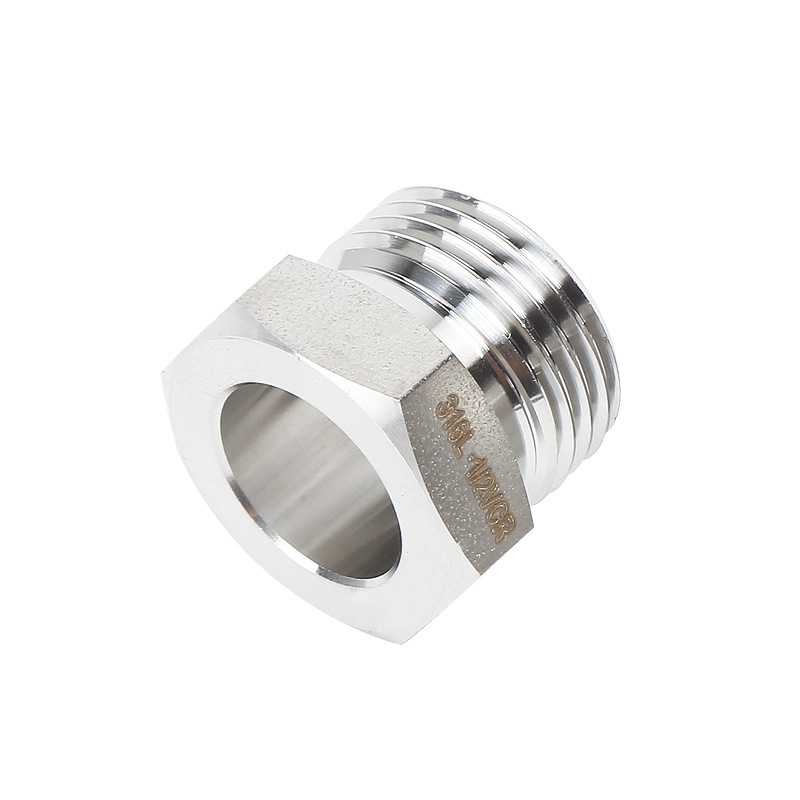

20260924 whajhh9l
20260924 ntlsbzlo

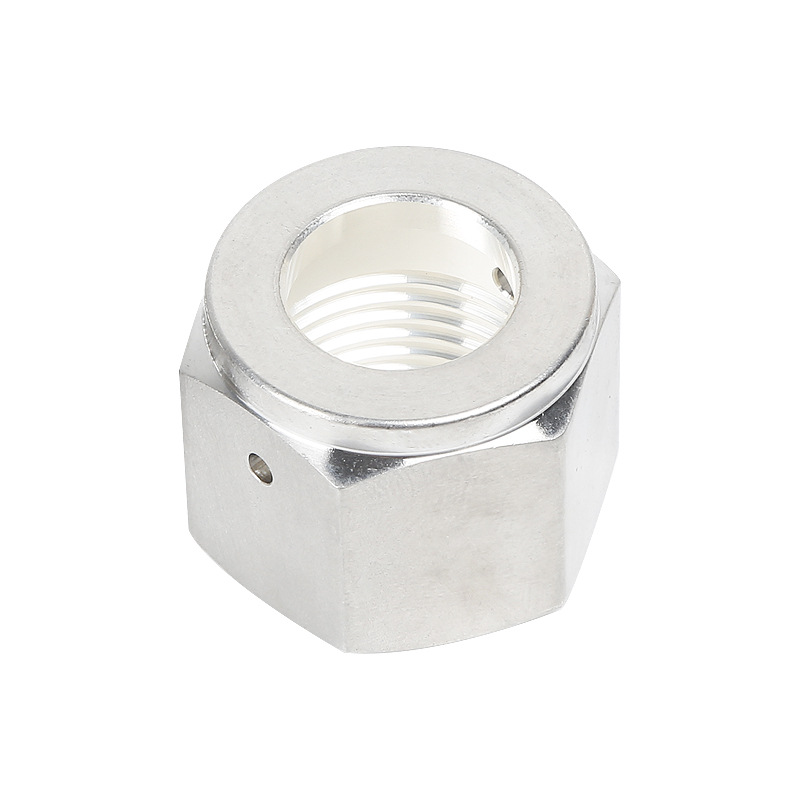

Premium 316L stainless steel VCR nuts (female and male) designed for high-purity gas and fluid systems. Features EP (Electropolished) grade surface, silver plating to prevent thread galling, and a leak detection port for safety. Available in sizes from 1/4″ to 1″.

Part TypeSize (inch)Surface FinishHex Width (A/F) mmTotal Length mmInner Bore mmLeak PortDrawing

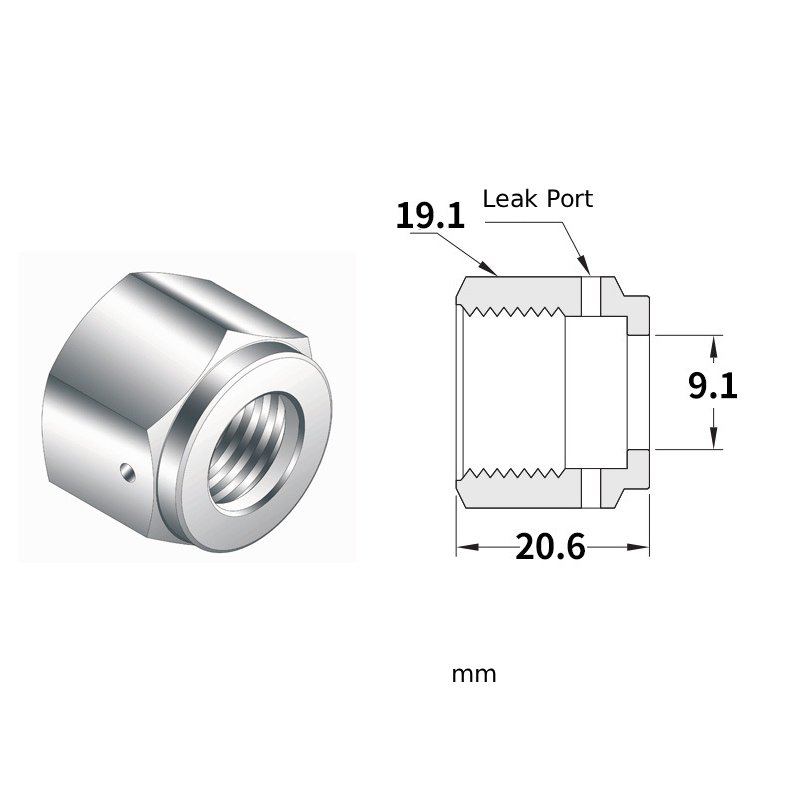

Female Nut1/4″Silver Plated19.120.69.1YesView

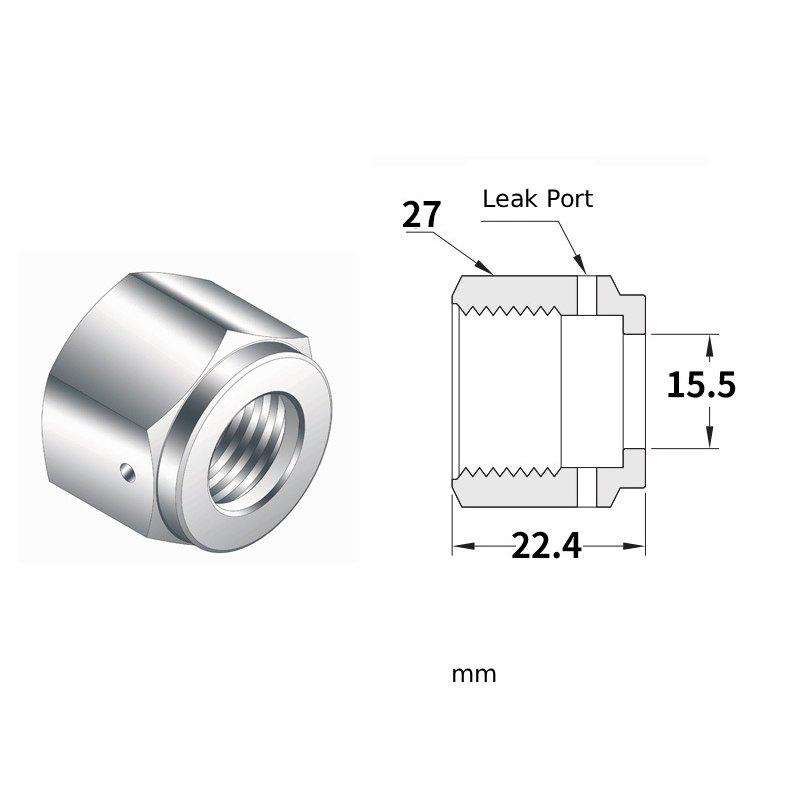

Female Nut1/2″Silver Plated27.022.415.5YesView

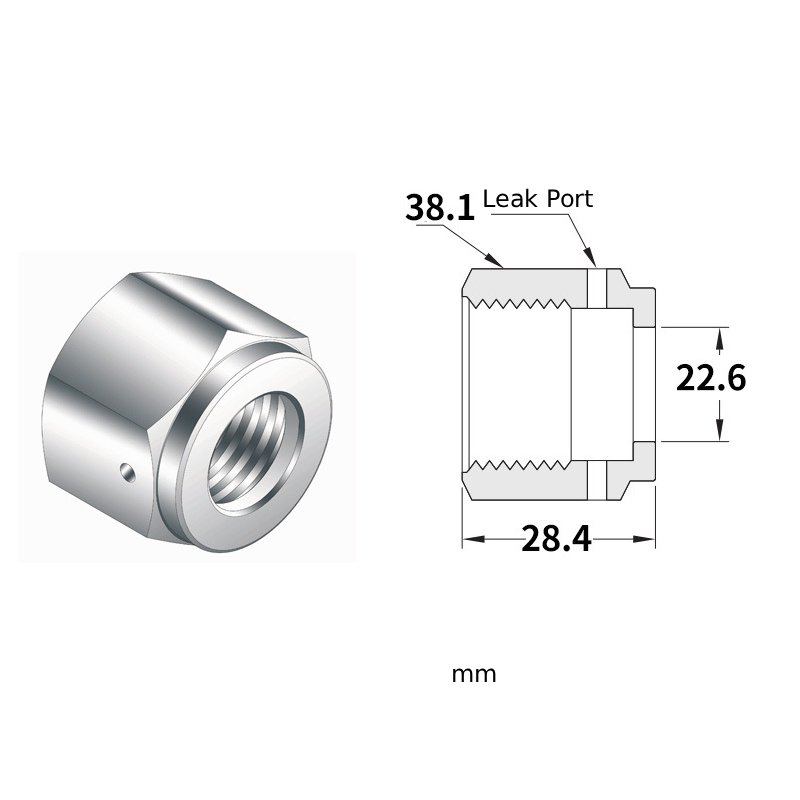

Female Nut3/4″Silver Plated38.128.422.6YesView

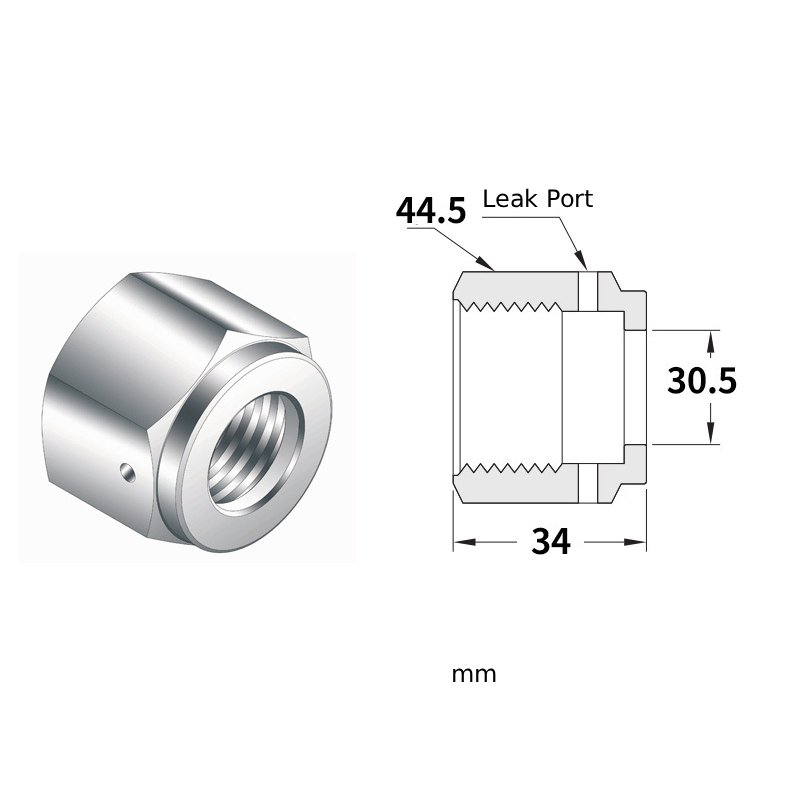

Female Nut1″Silver Plated44.534.030.5YesView

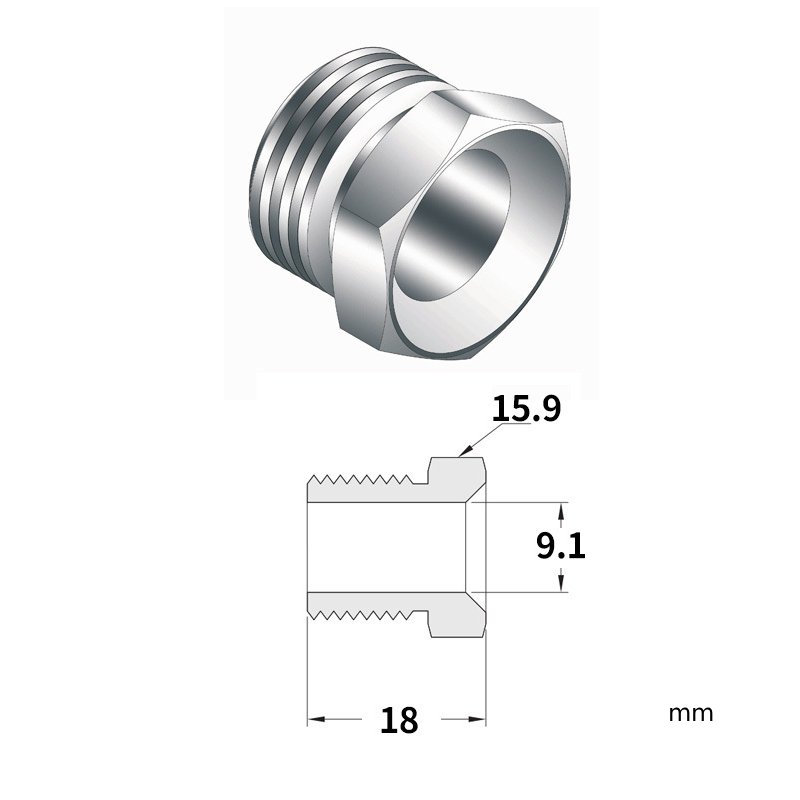

Male Nut1/4″Silver Plated15.918.09.1NoView

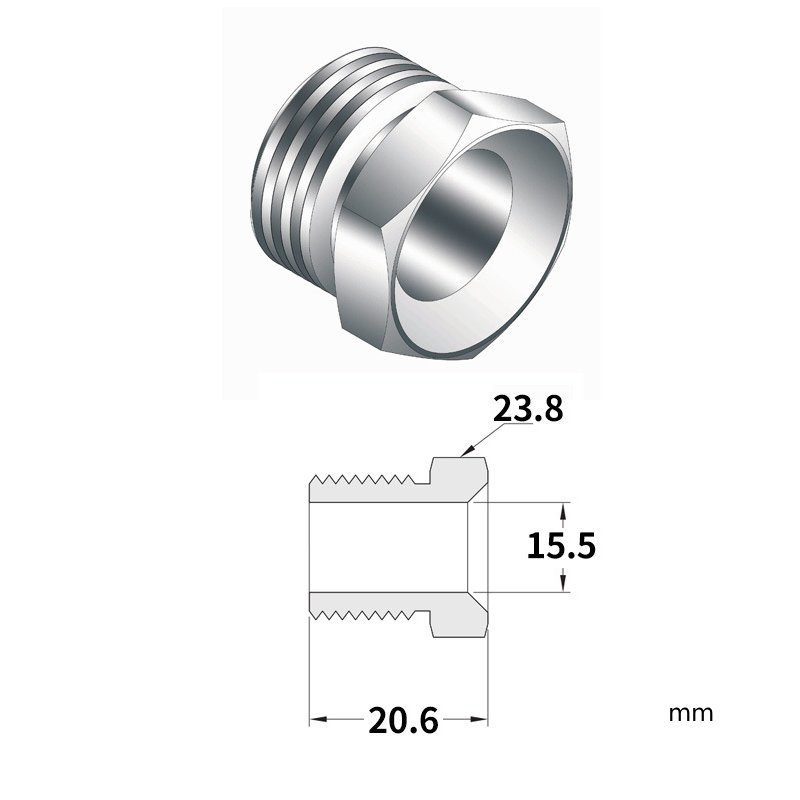

Male Nut1/2″Silver Plated23.820.615.5NoView

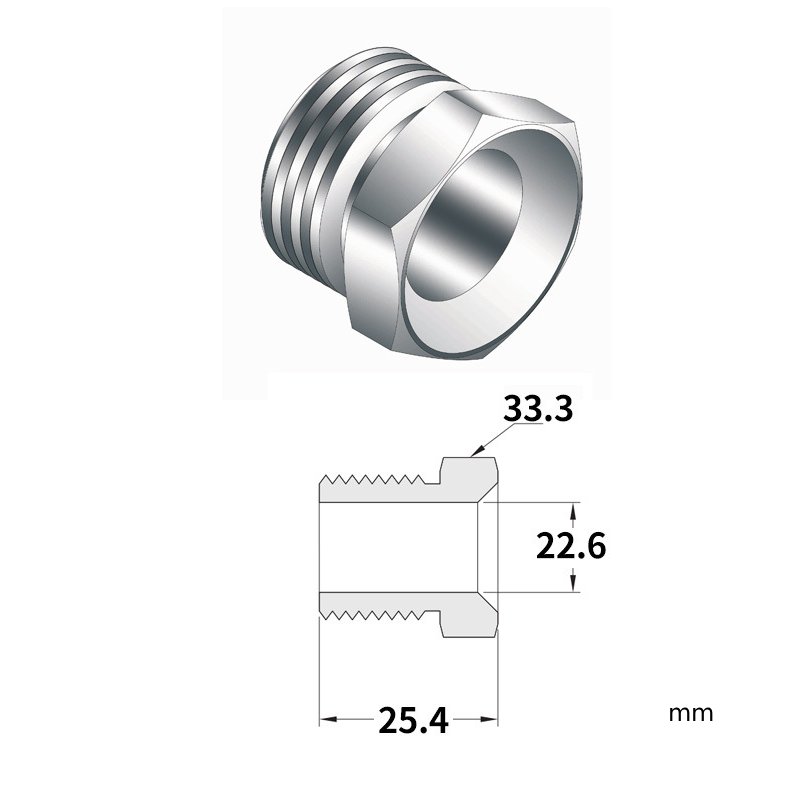

Male Nut3/4″Silver Plated33.325.422.6NoView

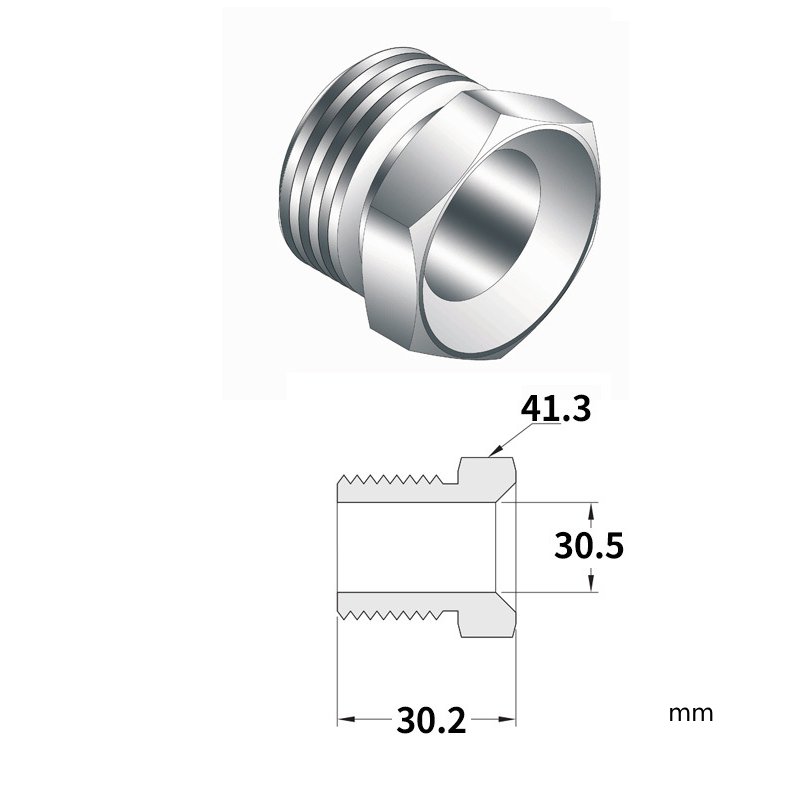

Male Nut1″Silver Plated41.330.230.5NoView
Material

SS316L
VCR Nuts

Female Nut, Male Nut
Size

1/4", 1/2", 3/4", 1"
Country of Origin

China
Dimensional Tolerance

±0.05mm
Surface Finish

Electropolished (EP), Silver Plated

VCR Related products
