316L Stainless Steel VCR Gaskets | Un-retained & Retained | EP Grade | 1/4″ to 1″

20260924 1conow93

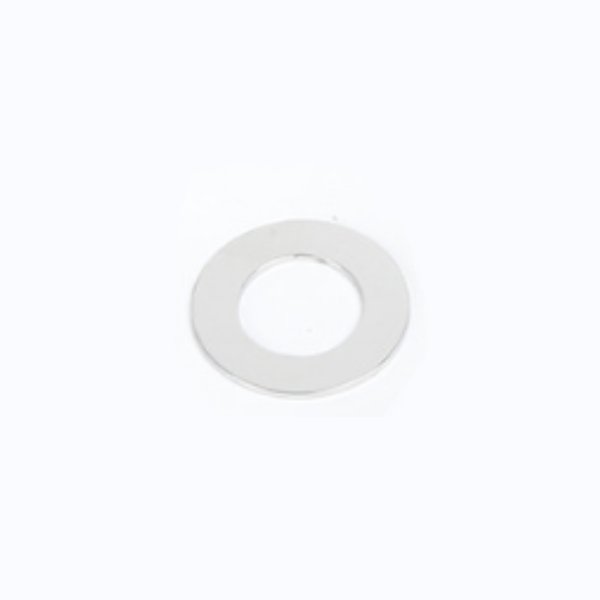

20260924 ocguxc9x

Premium 316L stainless steel VCR gaskets designed for high-purity gas and fluid systems. Available in un-retained and retained (with legs) configurations. Features EP (Electropolished) grade surface for ultra-high purity. Sizes from 1/4″ to 1″.

TypeSize (inch)Surface FinishInner Diameter mmOuter Diameter mmThickness mmDrawing
Un-retained Gasket1/4″EP Grade5.611.90.7View
Un-retained Gasket1/2″EP Grade11.219.80.7View
Retained Gasket1/4″EP Grade6.112.70.7View
Retained Gasket1/2″EP Grade11.220.10.7View
Retained Gasket3/4″EP Grade16.829.00.7View
Retained Gasket1″EP Grade22.635.60.7View
Material

SS316L
Type

Un-retained Gasket, Retained Gasket
Size

1/4", 1/2", 3/4", 1"
Country of Origin

China
Dimensional Tolerance

±0.05mm
Surface Finish

Electropolished (EP)
