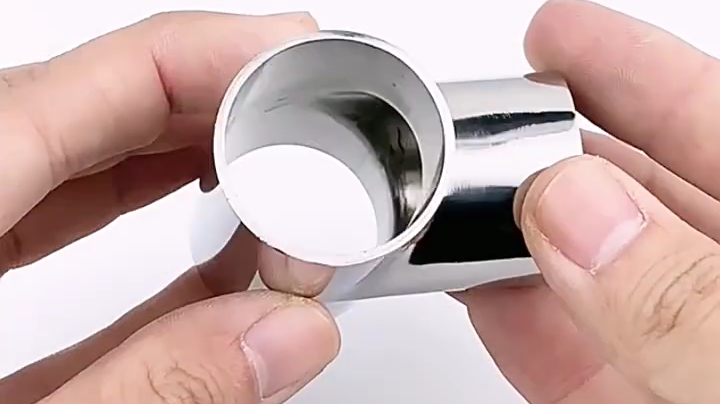

20261004 fdfsnq9x

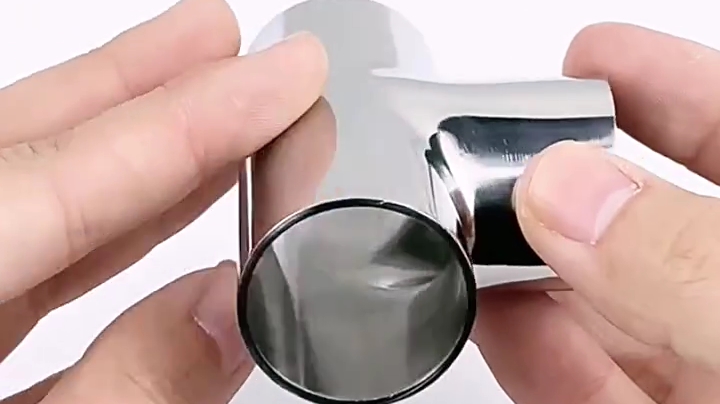

20261004 gubgk5s9

Custom 304/316L sanitary tees for large and non-standard tube sizes, available from 12.7 to 325 mm OD with flexible dimensions and independent ID/OD surface finishes.

Flexible customization is available for length, wall thickness, branch diameter, material, and independent ID/OD surface finishes

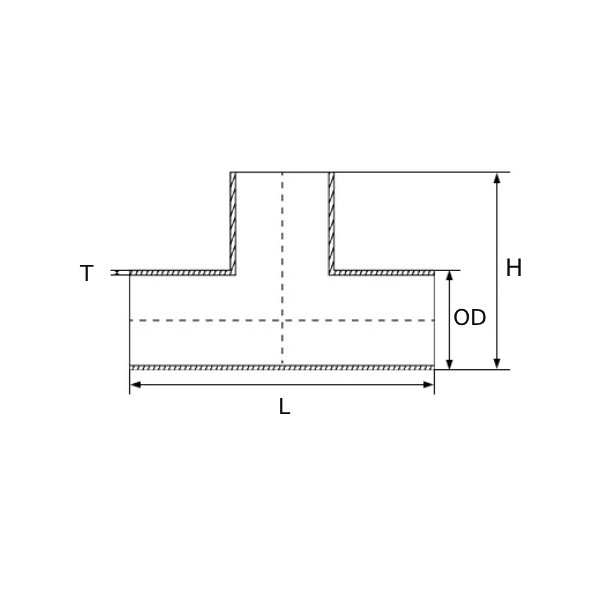

Outer Diameter × Wall Thickness:

Size designation
OD × WT		Outer diameter
OD (mm)		Wall thickness
WT (mm)		Height
H (mm)		Length
L (mm)
Φ12.7 × 1.512.71.532.552.2
Φ14 × 1.5141.534.854.3
Φ16 × 1.5161.53656
Φ19 × 1.5191.53957
Φ19 × 21923957
Φ22 × 1.5221.541.761.7
Φ25 × 1.5251.54667
Φ25 × 22524667
Φ28 × 1.5281.55273
Φ32 × 1.5321.55476
Φ32 × 23225476
Φ34 × 1.5341.55778
Φ38 × 1.5381.56997
Φ38 × 23826997
Φ40 × 1.5401.570100
Φ42 × 1.5421.574.2105.2
Φ45 × 1.5451.581115
Φ45 × 245282115
Φ48 × 1.5481.586116
Φ51 × 1.5511.588121
Φ51 × 251285.4120.7
Φ53 × 1.5531.590122
Φ57 × 257295128
Φ57 × 357392128
Φ60 × 260296128
Φ63 × 2632100132
Φ63 × 3633100129
Φ70 × 2702104142
Φ76 × 2762120151
Φ76 × 3763107150
Φ85 × 2852123166
Φ89 × 2892135170
Φ89 × 3893127170
Φ102 × 21022152190
Φ102 × 31023145.5190
Φ104 × 21042148196
Φ108 × 21082156202
Φ108 × 31083154200
Φ114 × 21142159207
Φ114 × 31143160.3205.4
Φ129 × 21292185250
Φ133 × 21332193250
Φ133 × 31333185250
Φ152 × 21522215272
Φ154 × 21542225270
Φ159 × 21592225288
Φ159 × 31593210290
Φ204 × 22042277356
Φ219 × 32193287356
Φ254 × 32543343431

Customization

These stainless steel sanitary tees can be customized to suit specific piping requirements. In addition to standard and large tube sizes, we can accommodate non-standard dimensions, including tube OD, branch diameter, wall thickness, overall length, and other connection dimensions. Material and internal/external surface finishes can also be specified independently. Custom tees can be produced from drawings, CAD files, samples, or detailed dimensional requirements.

Specifications / Dimensions

ParameterCustom Options
Main Tube OD12.7–325 mm / Custom
Branch ODCustom
Wall Thickness (T)Custom
Overall Length (L)Custom
Material304 / 316L / Custom
ID Surface FinishPolished / Mirror Polished / Electropolished / Custom
OD Surface FinishMill / Satin / Brushed / Mirror Polished / Custom
1. What sizes of sanitary tees can you customize?
We can customize sanitary tees with tube OD from 12.7 to 325 mm, including non-standard sizes and large-diameter configurations.
2. Can the branch diameter be customized?
Yes. The branch diameter can be specified independently according to your piping requirements, including equal and reducing tee configurations.
3. Can the length of the tee be customized?
Yes. The overall length and branch dimensions can be customized according to drawings, samples, or specified dimensions.
4. Can the wall thickness be customized?
Yes. Wall thickness can be customized to match the tube specification and application requirements.
5. Can the internal and external surface finishes be different?
Yes. ID and OD surface finishes can be specified independently. For example, the internal surface can be polished while the external surface has a satin or brushed finish.
6. Can you manufacture a tee according to a drawing or sample?
Yes. We can work from 2D drawings, 3D CAD files, samples, dimensions, or equipment requirements to determine the required configuration.
7. Can large-diameter sanitary tees be customized?
Yes. Custom configurations are available for larger tube sizes up to 325 mm OD, subject to the required dimensions and manufacturing method.
8. Do you accept small quantities or one-off custom orders?
Small-batch and one-off custom requirements can be considered. The minimum quantity and production feasibility depend on the specific configuration.
Material

304 Stainless Steel, 316L Stainless Steel
Size

12.7, 14, 16, 19, 22, 25, 28, 32, 34, 38, 40, 42, 45, 48, 51, 53, 57, 60, 63, 70, 76, 85, 89, 102, 104, Costom
OD Surface Finish

Mill / Satin / Brushed / Mirror Polished / Custom
ID Surface Finish

Polished, Mirror Polished, Electropolished
Wall Thickness

1.5mm, 1.65mm, 2mm, 3mm
Manufacturing Process

TIG Welded
Welding Method

Single-side welding with full internal penetration
Internal Profile

Smooth, continuous transition at the branch junction
