316L/304 Stainless Steel Sanitary 90° Long Weld Elbow

20261004 pvzsxmbq
20261004 sjasz6zs
20261004 k7i6w5u5

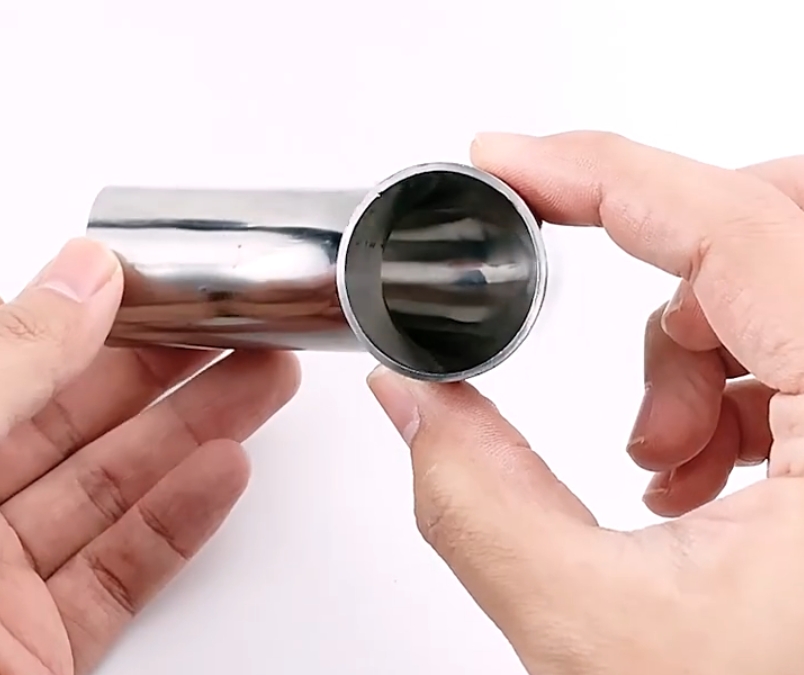

Sanitary 90° long weld elbows made from 316L or 304 stainless steel, available with internal and external mirror polishing and custom straight lengths, bend dimensions and wall thicknesses.

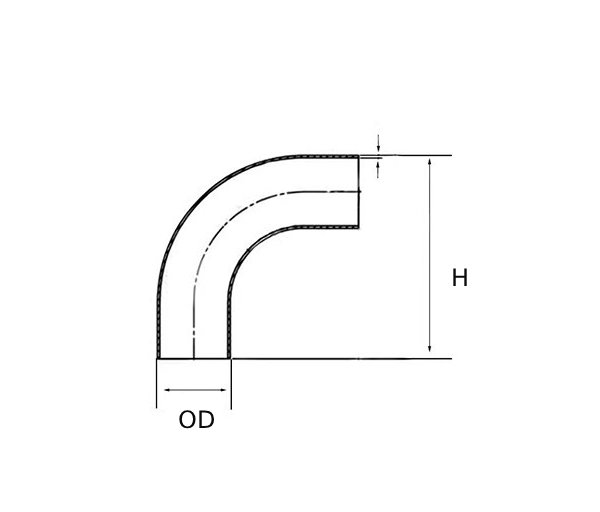

Size designation
OD × WT		Outer diameter
OD (mm)		Wall thickness
WT (mm)		Height
  (mm)
Φ10 × 1.5101.547.3
Φ12.7 × 1.512.71.550
Φ12.7 × 1.512.71.580
Φ14 × 1.5141.552.2
Φ16 × 1.5161.566
Φ19 × 1.5191.567.5
Φ22 × 1.5221.570
Φ25 × 1.5251.571
Φ28 × 1.5281.579
Φ32 × 1.5321.583
Φ34 × 1.5341.585
Φ38 × 1.5381.597
Φ40 × 1.5401.5102
Φ45 × 1.5451.5108
Φ51 × 1.5511.5118
Φ57 × 2572128
Φ63 × 2632138
Φ70 × 2702148
Φ76 × 2762156
Φ85 × 2852169
Φ89 × 2892190
Φ102 × 21022206
Φ108 × 21082215

Custom Options

ParameterOptions
Tube OD10–273 mm, according to available sizes
Wall ThicknessCustom
Bend Angle90° standard / Custom
Bend RadiusCustom
Straight LengthCustom
Center-to-End DimensionCustom
Internal Surface FinishMirror Polished / Electropolished / Custom
External Surface FinishMirror Polished / Custom
End ConfigurationWeld End / Custom
Can the 90° sanitary weld elbow be customized?
Yes. We can customize the tube diameter, wall thickness, bend radius, straight length, center-to-end dimension and other dimensions according to your drawings or requirements.
What tube diameters are available?
Available tube outside diameters include 10, 12.7, 14, 16, 19, 22, 25, 28, 32, 34, 38, 40, 45, 51, 57, 63, 70, 76, 85, 89, 102, 108, 114, 129, 133, 140, 159, 168, 219 and 273 mm.
Can the elbow be made with an extended straight section?
Yes. The straight section can be customized to the required length for specific piping layouts and fabrication requirements.
Can the bend radius be customized?
Yes. Custom bend radii can be produced according to the required dimensions and application.
Can the wall thickness be customized?
Yes. The wall thickness can be specified according to the tube diameter and application requirements.
What surface finishes are available?
Internal and external surfaces can be supplied with mechanical polishing and mirror polishing. Electropolishing may also be available depending on the requirements.
Is this elbow suitable for hygienic and clean process piping?
304 and 316L stainless steel elbows with appropriate surface finishing can be used in hygienic and clean process piping applications. The suitable material, finish and fabrication requirements depend on the specific process.
Material

304 Stainless Steel, 316L Stainless Steel
Size

10, 12.7, 14, 16, 19, 22, 25, 28, 32, 34, 38, 40, 45, 51, 57, 63, 70, 76, 85, 89, 102, 219, 273, Costom
OD Surface Finish

Mill / Satin / Brushed / Mirror Polished / Custom
ID Surface Finish

Polished / Mirror Polished / Electropolished / Custom
Wall Thickness

1.5mm, 1.65mm, 2mm, 3mm
Internal Profile

Smooth, continuous transition at the branch junction
