CF-Series One-Piece Six-Way High-Vacuum Chamber

20260925 raie9nmf

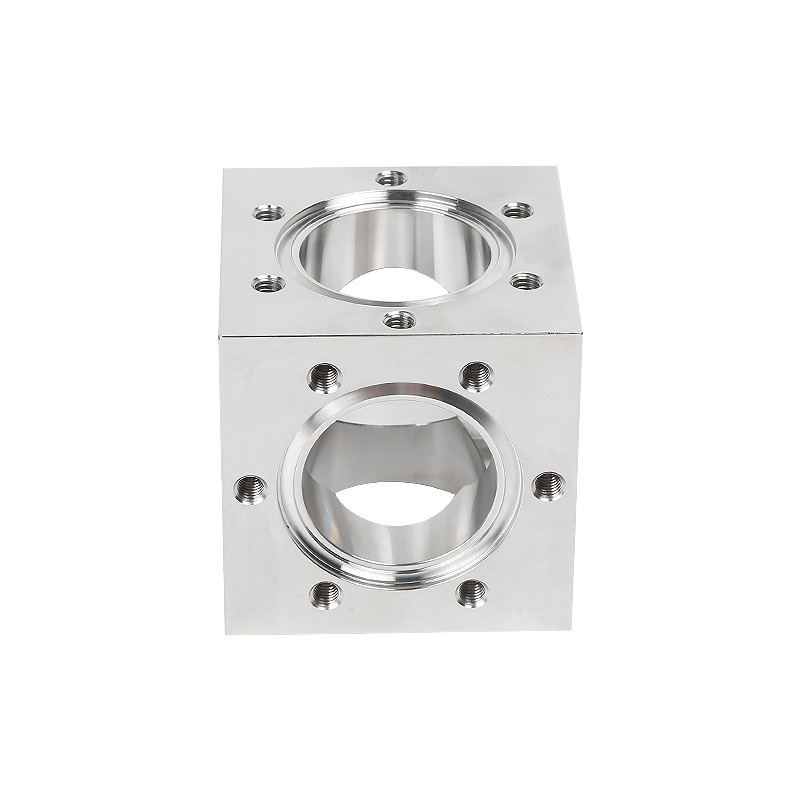

20260925 agvij0uo

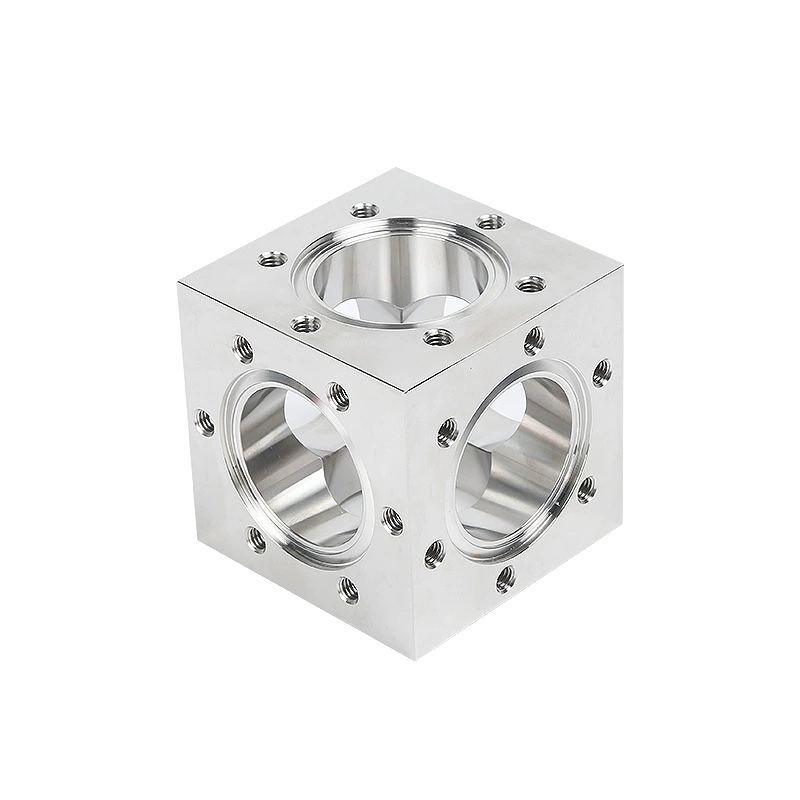

20260925 to9fwttf

Precision-machined, one-piece (no welds) 6-way CF vacuum body manufactured from genuine 304 stainless steel (Tsingshan raw material). Integrated knife-edge ConFlat flanges are fully interchangeable with standard bolted CF flanges and oxygen-free copper gaskets for UHV applications across semiconductor, biopharmaceutical, food-fluid and water-treatment systems.

SizeFlange Size (inch/mm)A (mm)Inner Bore B (mm)Bolt Hole (mm)
CF161.33″ / 33.834166.5
CF352.75″ / 7070.138.19.4
CF503.38″ / 85.785.3450.89.4
CF634.5″ / 114.3113.363.512.7
CF1006″ / 152.4151.4101.612.7
CF1608″ / 203.2202.2152.412.7
CF20010″ / 254253203.412.7
Material

304L, SS316L
Size

CF16, CF25, CF35, CF50, CF63, CF100, CF160, CF200
Country of Origin

China
Dimensional Tolerance

±0.05mm
Processing Method

CNC Precision Turned
