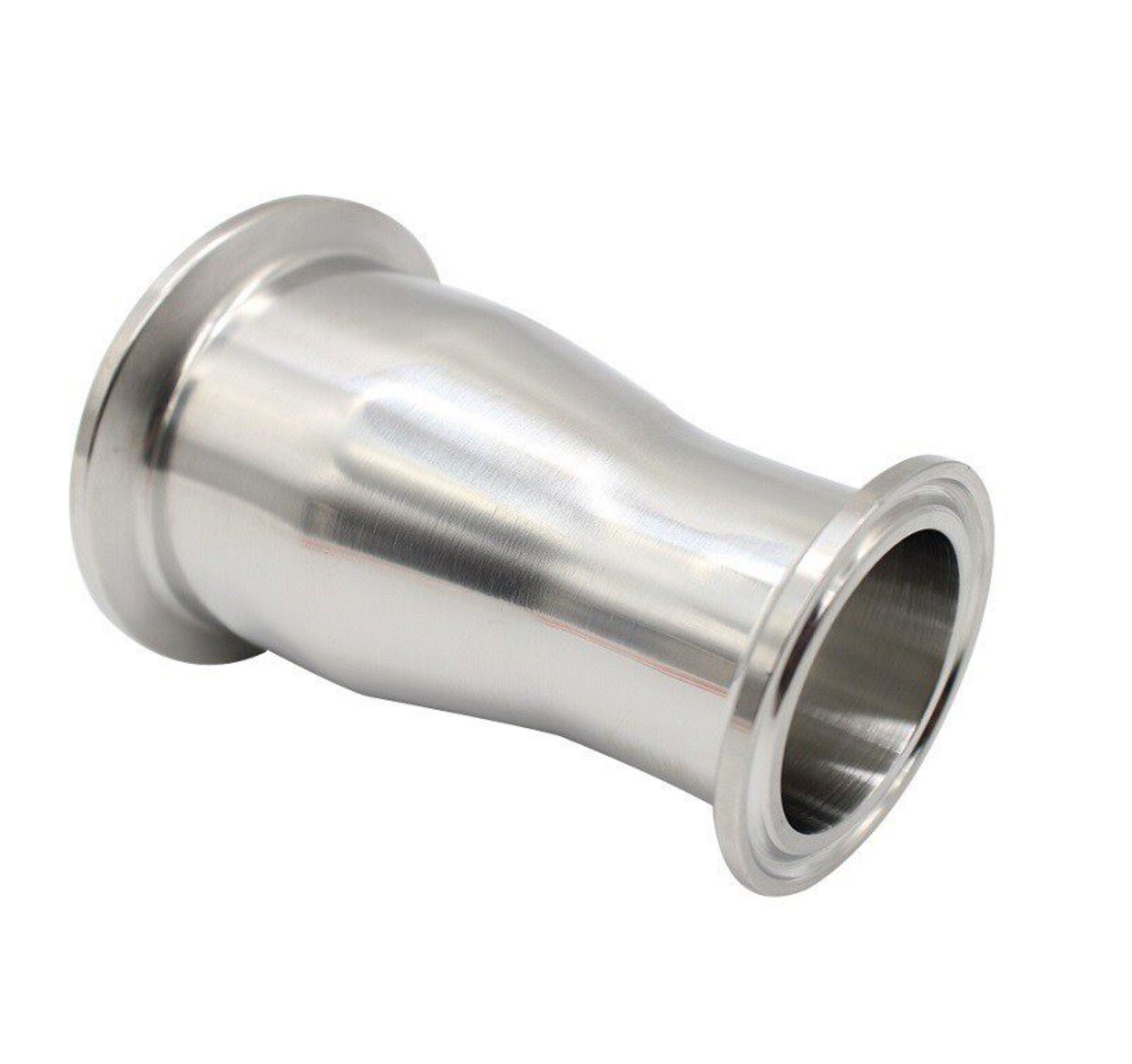

Name: Sanitary Tri-Clamp Reducer | 316L Stainless Steel Concentric Clamp Adapter | Food Grade Quick Connect Fitting
Brand: WeldPure

Weld Fittings & Adapters

Concentric Tri-Clamp x Tri-Clamp reducer. Available in multiple size combinations from Φ25 to Φ102. Lengths range from 50.8mm to 148mm. Custom sizes and materials available upon request.

Material

Size

Clear

Description
Additional information

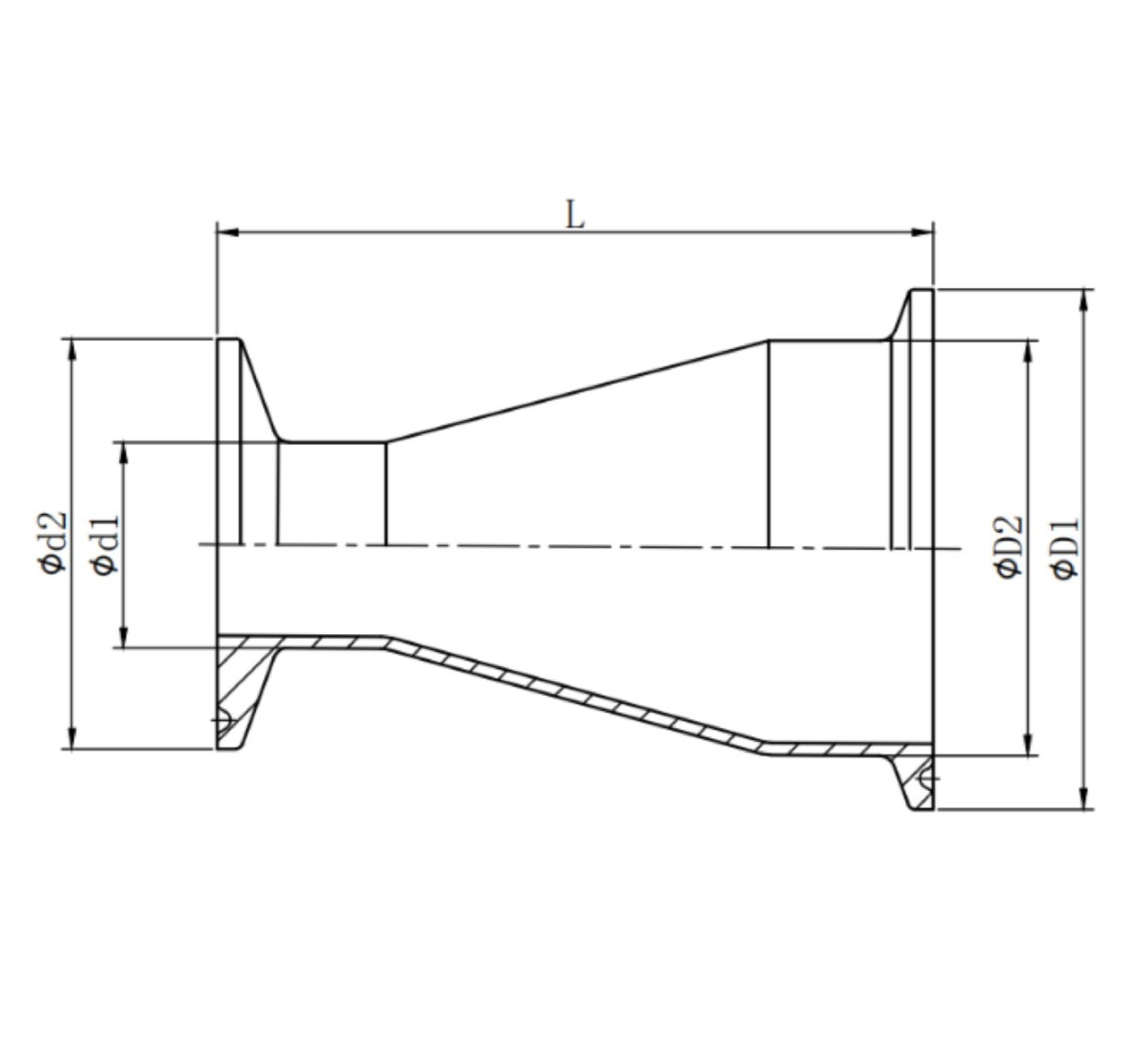

Variant Name Format: ΦD2 – Φd2 (or -2 for alternative d2 size)
ΦD1: Tri-Clamp ferrule outer diameter of the large end.
ΦD2: Actual outer diameter of the large end.
Φd1: Actual outer diameter of the small end.
Φd2: Tri-Clamp ferrule outer diameter of the small end.
L: Overall length.

Variant Name	ΦD1 (mm)	ΦD2 (mm)	Φd1 (mm)	Φd2 (mm)	Length L (mm)
25-19	50.5	25.4	19.05	50.5	78
25-19-2	50.5	25.4	19.05	25.4	50.8
32-19	50.5	31.8	19.05	50.5	81
32-25	50.5	31.8	25.4	50.5	81
38-19	50.5	38.1	19.05	50.5	81
38-19-2	50.5	38.1	19.05	25.4	76.2
38-25	50.5	38.1	25.4	50.5	83
38-32	50.5	38.1	31.8	50.5	81
45-19	64	45	19.05	50.5	83
45-25	64	45	25.4	50.5	84
45-32	64	45	31.8	50.5	86
45-38	64	45	38.1	50.5	87
51-19	64	50.8	19.05	50.5	91
51-25	64	50.8	25.4	50.5	88
51-32	64	50.8	31.8	50.5	90
51-38	64	50.8	38.1	50.5	87
51-45	64	50.8	45	64	91
57-19	77.5	57	19.05	50.5	106
57-25	77.5	57	25.4	50.5	103
57-32	77.5	57	31.8	50.5	100
57-38	77.5	57	38.1	50.5	103
57-45	77.5	57	45	64	103
57-51	77.5	57	50.8	64	89
63-25	77.5	63.5	25.4	50.5	94
63-32	77.5	63.5	31.8	50.5	103
63-38	77.5	63.5	38.1	50.5	93
63-45	77.5	63.5	45	64	101
63-51	77.5	63.5	50.8	64	93
63-57	77.5	63.5	57	77.5	103
76-25	91	76.2	25.4	50.5	105
76-32	91	76.2	31.8	50.5	113
76-38	91	76.2	38.1	50.5	113
76-45	91	76.2	45	64	113
76-51	91	76.2	50.8	64	103
76-57	91	76.2	57	77.5	103
76-63	91	76.2	63.5	77.5	103
89-32	106	88.9	31.8	50.5	124
89-38	106	88.9	38.1	50.5	124
89-45	106	88.9	45	64	124
89-51	106	88.9	50.8	64	124
89-57	106	88.9	57	77.5	128
89-63	106	88.9	63.5	77.5	128
89-76	106	88.9	76.2	91	119
102-32	119	101.6	31.8	50.5	148
102-38	119	101.6	38.1	50.5	148
102-45	119	101.6	45	64	148
102-51	119	101.6	50.8	64	138
102-57	119	101.6	57	77.5	138
102-63	119	101.6	63.5	77.5	133
102-76	119	101.6	76.2	91	133
102-89	119	101.6	88.9	106	116

Material	SS316L
Size	25-19, 25-19-2, 32-19, 32-25, 38-19, 38-19-2, 38-25, 38-32, 45-19, 45-25, 45-32, 45-38, 51-19, 51-25, 51-32, 51-38, 51-45, 57-19, 57-25, 57-32, 57-38, 57-45, 57-51, 63-25, 63-32, 63-38, 63-45, 63-51, 63-57, 76-25, 76-32, 76-38, 76-45, 76-51, 76-57, 76-63, 89-32, 89-38, 89-45, 89-51, 89-57, 89-63, 89-76, 102-32, 102-38, 102-45, 102-51, 102-57, 102-63, 102-76, 102-89
Surface Finish	Mirror Polished (MP)
Wall Thickness	1.5mm, 2mm
Brand	WeldPure
Connection Type	Tri-Clamp (Clamp)
Country of Origin	China
Standard	3A
Dimensional Tolerance	±0.05mm, ±0.3mm
Packaging	Individual PE bag + carton
Processing Method	CNC Precision Turned
