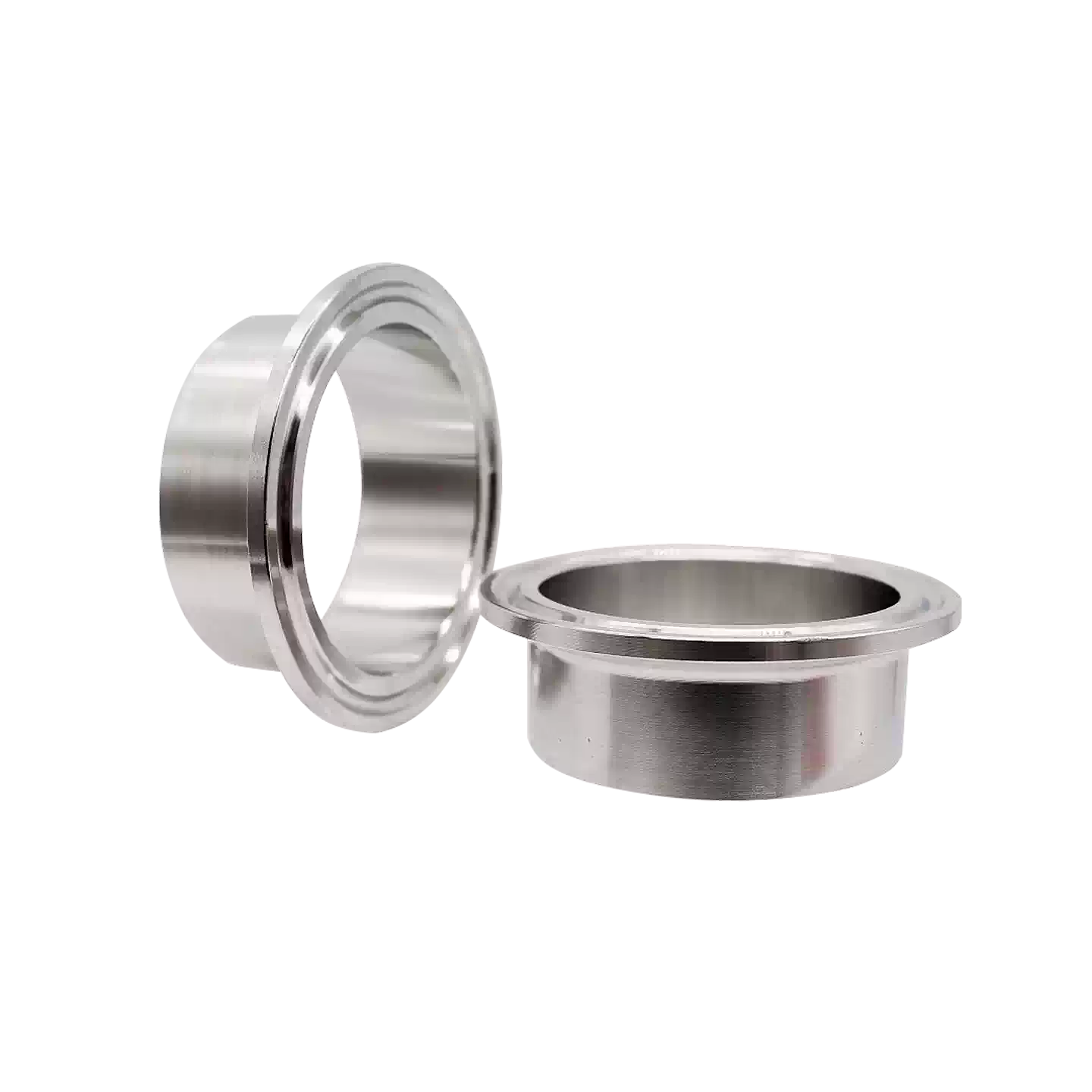

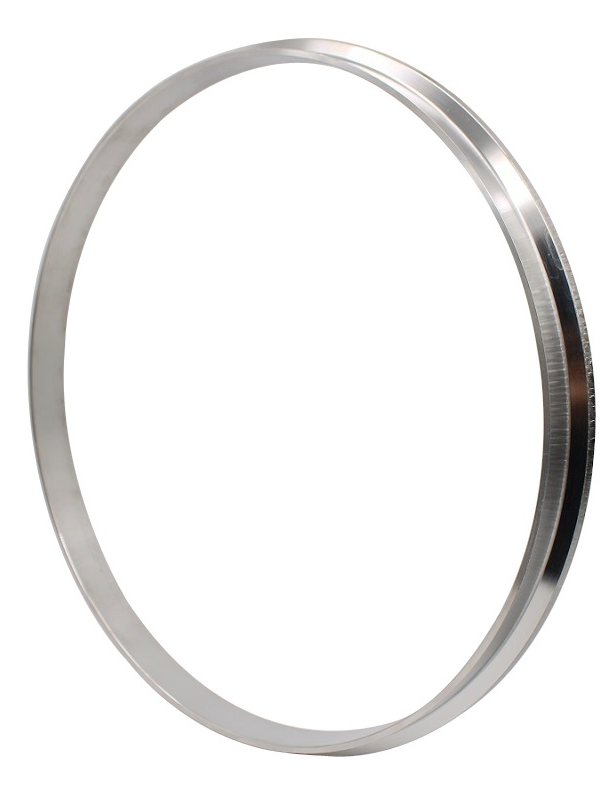

SS316L sanitary Tri-Clamp weld ferrules for hygienic piping in food, dairy, pharmaceutical, biotech, and semiconductor systems. Sizes 1/2″ to 24″ (DN12–DN608).

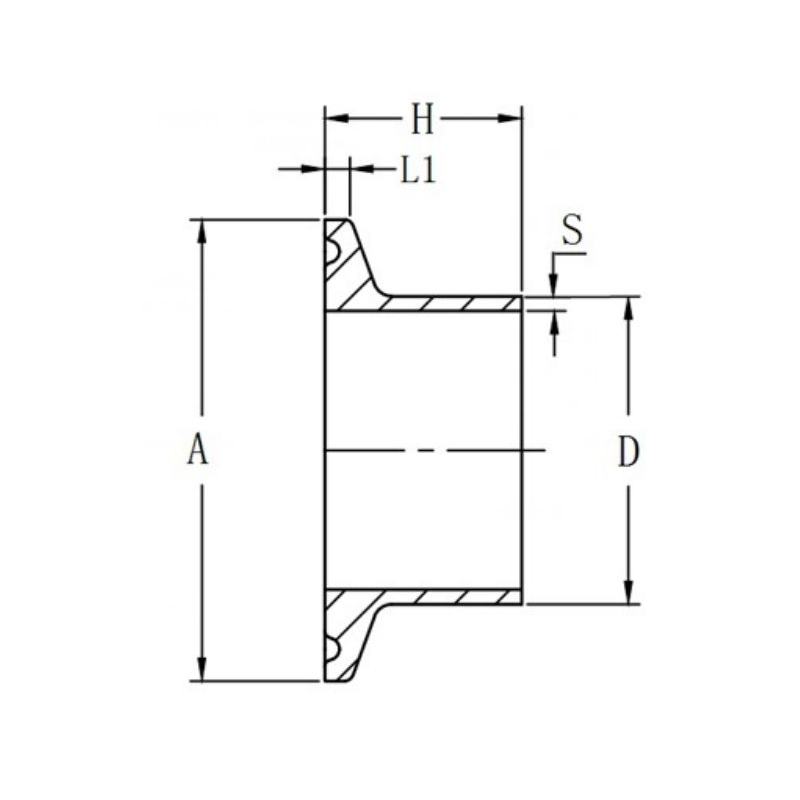

A: Chuck/flange outer diameter.
D: Weld end inner diameter.
H: Overall height.
S: Wall thickness.
L1: Chuck thickness.

Size (DN / inch)A Chuck (mm)D Weld Interface (mm)H Height (mm)S Wall Thickness (mm)L1 Chuck Thickness (mm)
DN12 (1/2″)3412181.52.85
DN12.7 (1/2″)25.412.721.51.52.85
DN12.7 (1/2″)50.512.721.51.52.85
DN18 (3/4″)3418181.52.85
DN19 (3/4″)25.41921.51.52.85
DN19 (3/4″)50.51921.51.52.85
DN22 (7/8″)3422181.52.85
DN22 (7/8″)50.52221.51.52.85
DN25 (1″)3425.421.51.52.85
DN25 (1″)4025.421.51.52.85
DN25 (1″)50.525.421.51.52.85
DN25 (1″)6425.421.51.52.85
DN28 (1-1/8″)50.52821.51.52.85
DN32 (1-1/4″)50.531.821.51.52.85
DN32 (1-1/4″)6431.821.51.52.85
DN34 (1-3/8″)50.53421.51.52.85
DN38 (1-1/2″)50.538.121.51.52.85
DN38 (1-1/2″)6438.121.51.52.85
DN40 (1-9/16″)50.54021.51.52.85
DN45 (1-3/4″)644521.51.52.85
DN51 (2″)645121.51.52.85
DN52 (2″)645221.51.52.85
DN57 (2-1/4″)77.55721.522.85
DN63 (2-1/2″)77.563.521.522.85
DN70 (2-3/4″)91702822.85
DN76 (3″)9176.221.522.85
DN85 (3-1/4″)106852822.85
DN89 (3-1/2″)10688.921.522.85
DN102 (4″)119101.621.522.85
DN104 (4″)1191042822.85
DN108 (4-1/4″)11910821.522.85
DN114 (4-1/2″)13011421.522.85
DN129 (5″)1451292822.85
DN129 (5″)1551292825.6
DN133 (5-1/4″)14513321.522.85
DN152 (6″)167152.421.52.85.6
DN154 (6″)1671542825.6
DN159 (6-1/4″)18315921.535.6
DN168 (6-5/8″)18316821.535.6
DN204 (8″)217203.221.535.6
DN219 (8-5/8″)23321921.535.6
DN254 (10″)26825421.535.6
DN273 (10-3/4″)28627321.535.6
DN305 (12″)31930521.535.6
DN325 (12-3/4″)350325234.55.6
DN356 (14″)380356234.55.6
DN377 (14-3/4″)400377234.55.6
DN406 (16″)430406234.55.6
DN426 (16-3/4″)450406234.55.6
DN456 (18″)480456234.55.6
DN508 (20″)530508234.55.6
DN608 (24″)630608234.55.6
Material

SS316L, SS304
Size

DN12, DN12.7, DN12.7, DN18, DN19, DN19, DN22, DN22, DN25, DN25, DN25, DN25, DN28, DN32, DN32, DN34, DN38, DN38, DN40, DN45, DN51, DN52, DN57, DN63, DN70, DN76, DN85, DN89, DN102, DN104, DN108, DN114, DN129, DN129, DN133, DN152, DN154, DN159, DN168, DN204, DN219, DN254, DN273, DN305, DN325, DN356, DN377, DN406, DN426, DN456, DN508, DN608
Brand

WeldPure
Customization

Custom sizes, materials, Standard
Country of Origin

China
Dimensional Tolerance

±0.05mm
Connection Type

Tri-Clamp (Clamp)
Packaging

Individual PE bag + carton
Wall Thickness

1.5mm, 2mm, 3mm, 4.5
Standard

DIN
