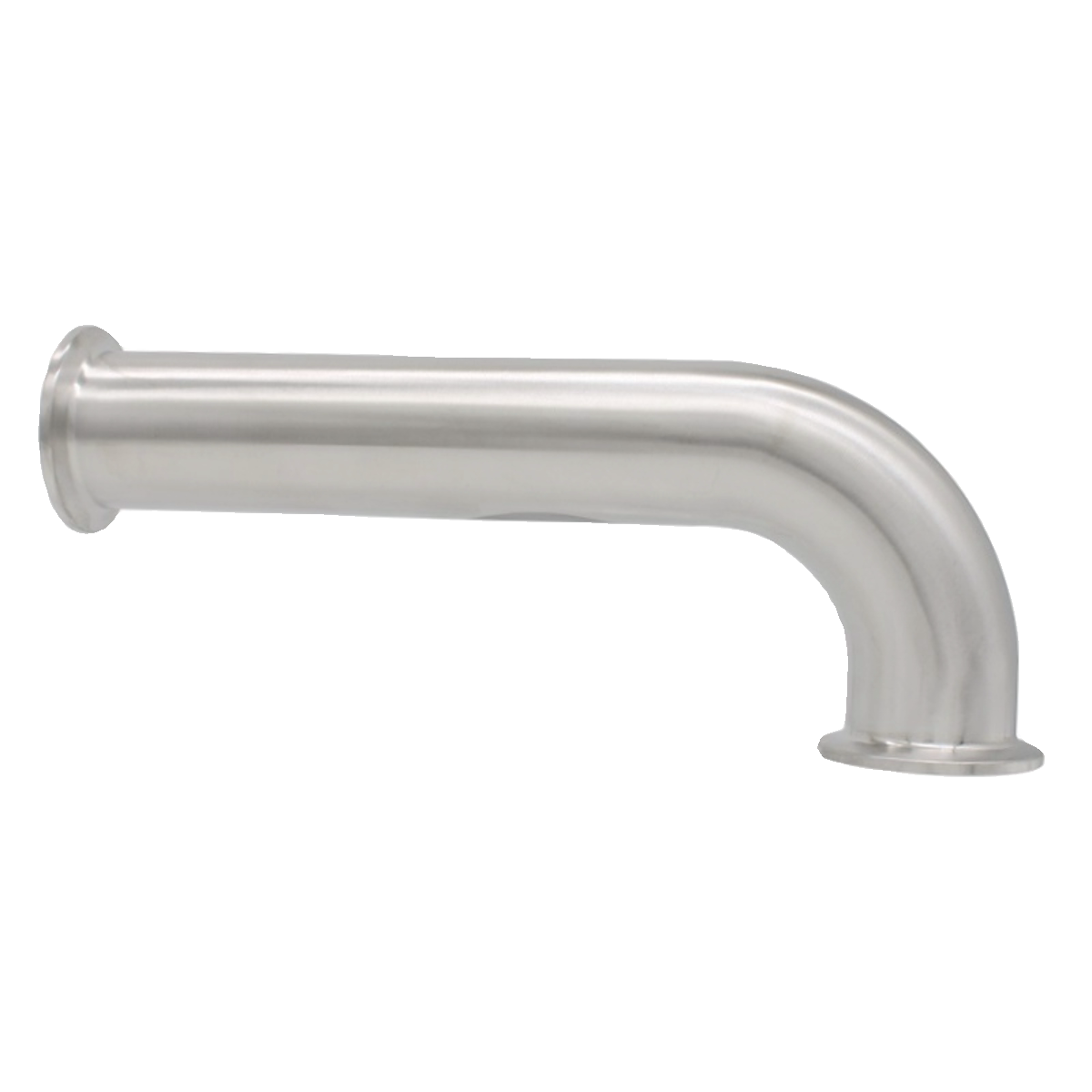

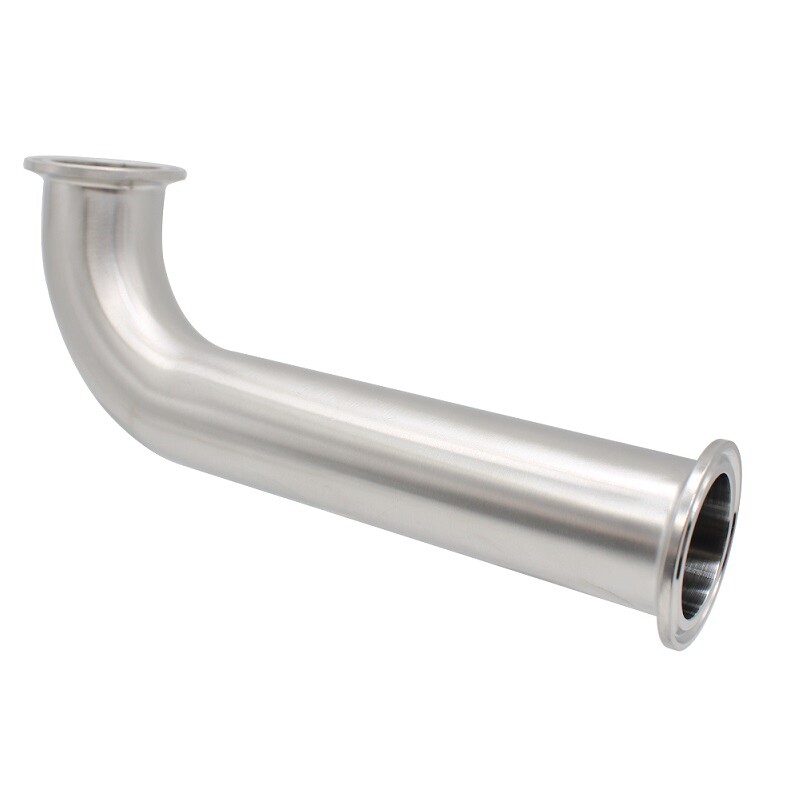

Sanitary Extended 90° Elbow | Tri-Clamp Fitting for Dairy Pharma

Name: Sanitary Extended 90° Elbow | Tri-Clamp Fitting for Dairy Pharma
Brand: WeldPure

Tubing & Assemblies

Premium Sanitary 90° Elbow with Extended Leg. Features Tri-Clamp x Tri-Clamp connections at both ends. Available in 304 or 316L stainless steel and multiple Tri-Clamp sizes (e.g., 1″ / 50.5mm, 2″ / 64mm). Fine polished surface for high-purity fluid handling. Custom leg lengths available. Ideal for Dairy, Food, Beverage, and Pharma applications.

Material

Size

Surface Finish

Wall Thickness

Clear

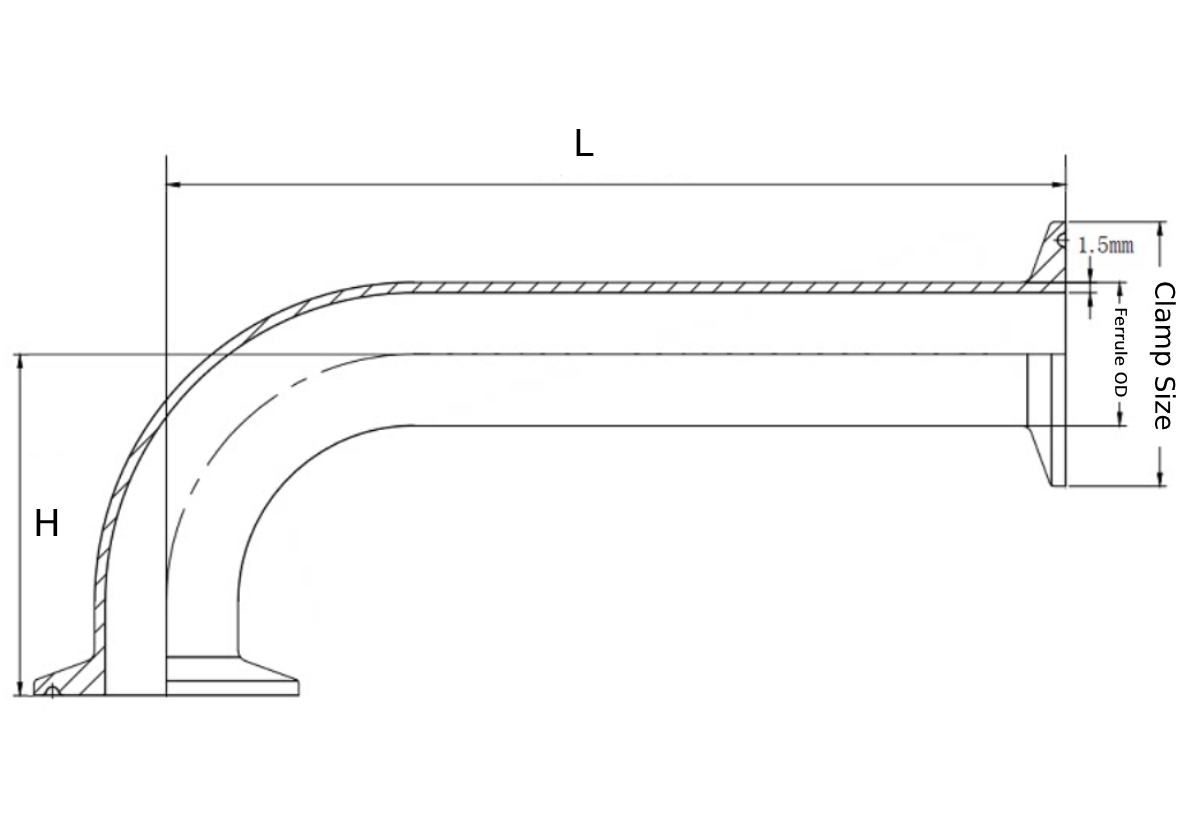

Name	Ferrule OD (mm)	Clamp Size (mm)	Length L (mm)	Height H (mm)	Thickness (mm)
25-50.5-152	25	50.5	152	55	1.5 / 1.65
25-50.5-204	25	50.5	204	55	1.5 / 1.65
25-50.5-254	25	50.5	254	55	1.5 / 1.65
25-50.5-305	25	50.5	305	55	1.5 / 1.65
25-50.5-457	25	50.5	457	55	1.5 / 1.65
25-50.5-610	25	50.5	610	55	1.5 / 1.65
32-50.5-152	32	50.5	152	59	1.5 / 1.65
32-50.5-204	32	50.5	204	59	1.5 / 1.65
32-50.5-254	32	50.5	254	59	1.5 / 1.65
32-50.5-305	32	50.5	305	59	1.5 / 1.65
32-50.5-457	32	50.5	457	59	1.5 / 1.65
32-50.5-610	32	50.5	610	59	1.5 / 1.65
38-50.5-152	38	50.5	152	70	1.5 / 1.65
38-50.5-204	38	50.5	204	70	1.5 / 1.65
38-50.5-254	38	50.5	254	70	1.5 / 1.65
38-50.5-305	38	50.5	305	70	1.5 / 1.65
38-50.5-457	38	50.5	457	70	1.5 / 1.65
38-50.5-610	38	50.5	610	70	1.5 / 1.65
51-64-152	51	64	152	82	1.5 / 1.65
51-64-204	51	64	204	82	1.5 / 1.65
51-64-254	51	64	254	82	1.5 / 1.65
51-64-305	51	64	305	82	1.5 / 1.65
51-64-457	51	64	457	82	1.5 / 1.65
51-64-610	51	64	610	82	1.5 / 1.65

For semiconductor-grade upgrades (EP, Helium Leak Test, Cleanroom Packaging), please contact us for a custom quote. (Recommended for 316L material.)

Can the extension length be customized?: Yes. The extension length can be customized according to the required piping layout, dimensions, or drawing.
Can the end connections be customized?: Yes. Different end connection configurations can be supplied according to the application requirements.
Can the elbow be manufactured according to a drawing?: Yes. Custom elbows can be fabricated based on drawings, dimensions, connection requirements, and other specifications.
Can orbital TIG welding be used for the tube joints?: Depending on the configuration and tube size, orbital TIG welding or other controlled welding processes can be used for tube joints.
What surface finishing options are available?: Surface finishing options may include mechanical polishing, pickling and passivation, and electropolishing, depending on the specified requirements.

Material	304 Stainless Steel, 316L Stainless Steel
Size	Φ25-50.5-152, Φ25-50.5-204, Φ25-50.5-254, Φ25-50.5-305, Φ25-50.5-457, Φ25-50.5-610, Φ32-50.5-152, Φ32-50.5-204, Φ32-50.5-254, Φ32-50.5-305, Φ32-50.5-457, Φ32-50.5-610, Φ38-50.5-152, Φ38-50.5-204, Φ38-50.5-254, Φ38-50.5-305, Φ38-50.5-457, Φ38-50.5-610, Φ51-64-152, Φ51-64-204, Φ51-64-254, Φ51-64-305, Φ51-64-457, Φ51-64-610
Brand	WeldPure
Connection Type	Tri-Clamp (Clamp)
Packaging	Individual PE bag + carton
Country of Origin	China
Dead Leg	Zero dead leg design
Surface Finish	Bright Polished (BP), Electropolished (EP), Mirror Polished (MP)
Dimensional Tolerance	±0.5mm, ±1mm
Standard	DIN
Wall Thickness	1.5mm, 1.65mm
Customization	Diameter, End Connections, Extension Length, Wall Thickness, Surface Finish, and Other Dimensions
